Inclined Slim Platform Wheelchair Lift for Curved Stairs
Slim Platform Wheelchair Lift for Curved Stairs Slim is an inclined platform wheelchair lift designed specifically for curved staircases and is ideal for tight spaces....
Brand:
Extrema
SKU:
MHPWS02
Product : Custom Made
Production Time : 75-90 Days
Installation Time : 1-2 Days Depend on Complexity
Please hurry! Only 0 left in stock
For Price Please Call or WhatsApp
10 customers are viewing this product
Couldn't load pickup availability
Shipped Within 2-3 Working Days after Production Time
Freight Charge As Per Actual
The excess amount will be refunded through bank transfer or UPI after product delivery.
Specifications
Condition:
Brand new
Type:
Indoor/outdoor
Model:
Slim
Platform dimensions (mm):
Standard 850x700 mm; special dimensions 750x600, 750x650, 750x700, 1000x800, 1250x800
Method of drive:
Rope traction system (steel cable)
Spacing between rail and wall:
From 95 mm to 175 mm according to the different type of fixing
Dimensions with closed platform:
From 305 mm to 385 mm according to the different kind of fixing
Load capacity:
250 kg standard, 300 kg optional
Power consumption:
750 w (approximately up to 4 flights), or 1100w
Main voltage:
115-240v (ac) 50-60hz
Control circuits voltage:
24v dc
Conformities:
Eec machine directive 2006/42/ce (en iso 12100-1; en iso 12100-2; en 81-40) | eec electromagnetic compatibility 2014/30/eu | electric installation conforming en 2014/35/eu
Starting and stop:
Soft-start and soft-stop system (smooth starting and stopping)

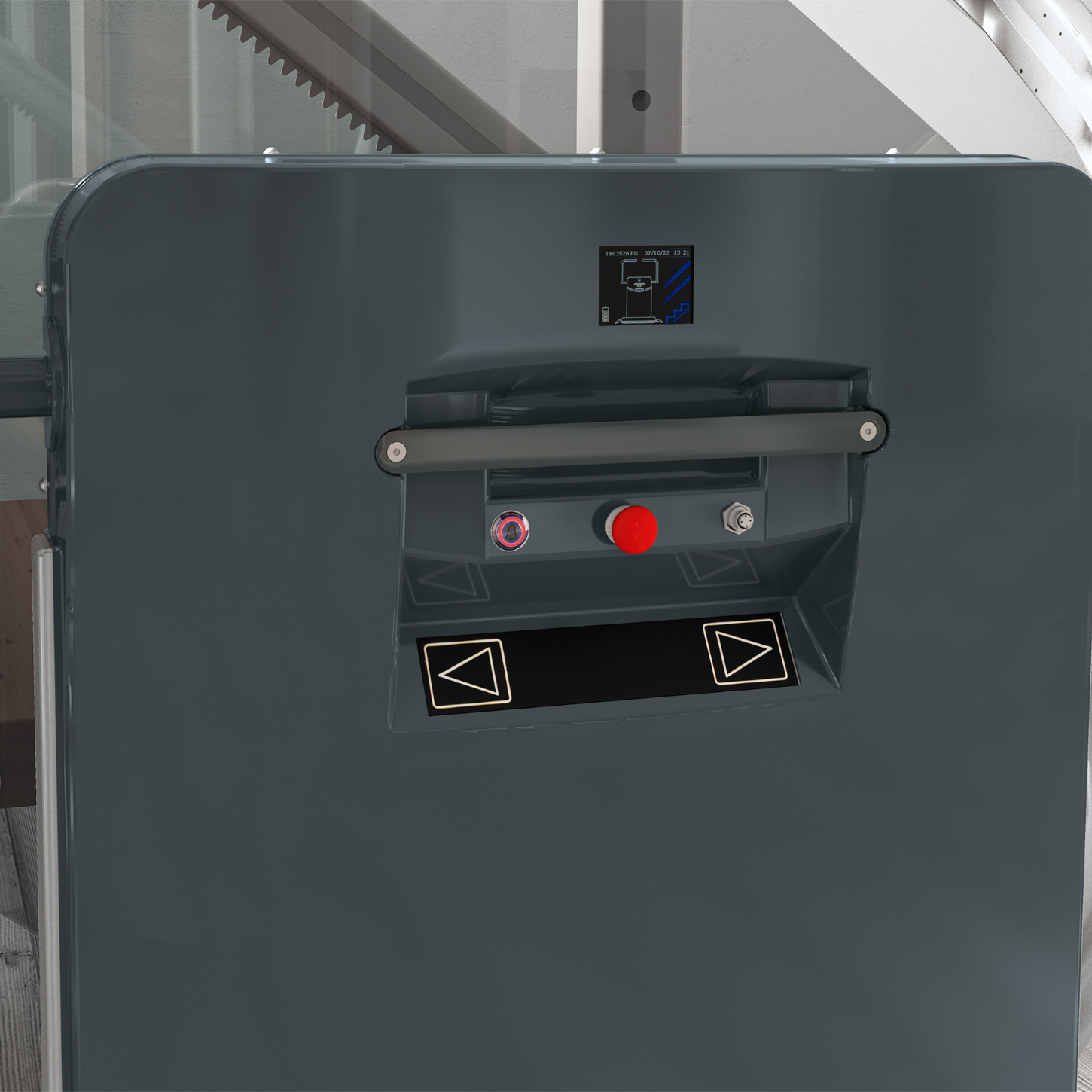

Controls:
Constant pressing
Warranty:
2 years parts only warranty
Made in:
Italy

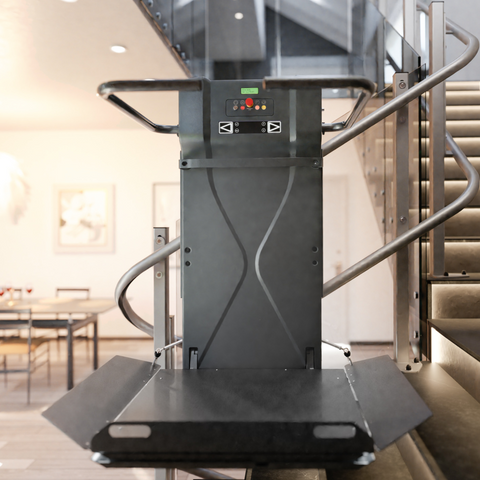

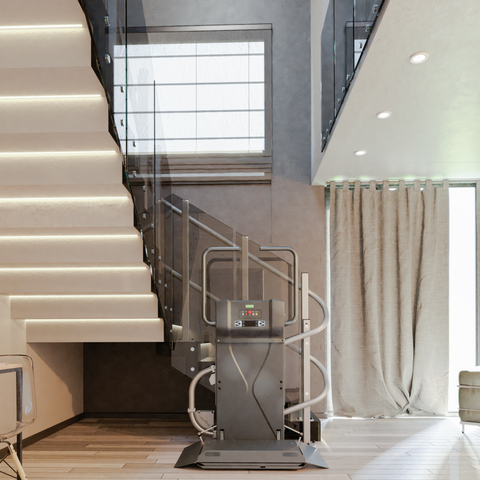

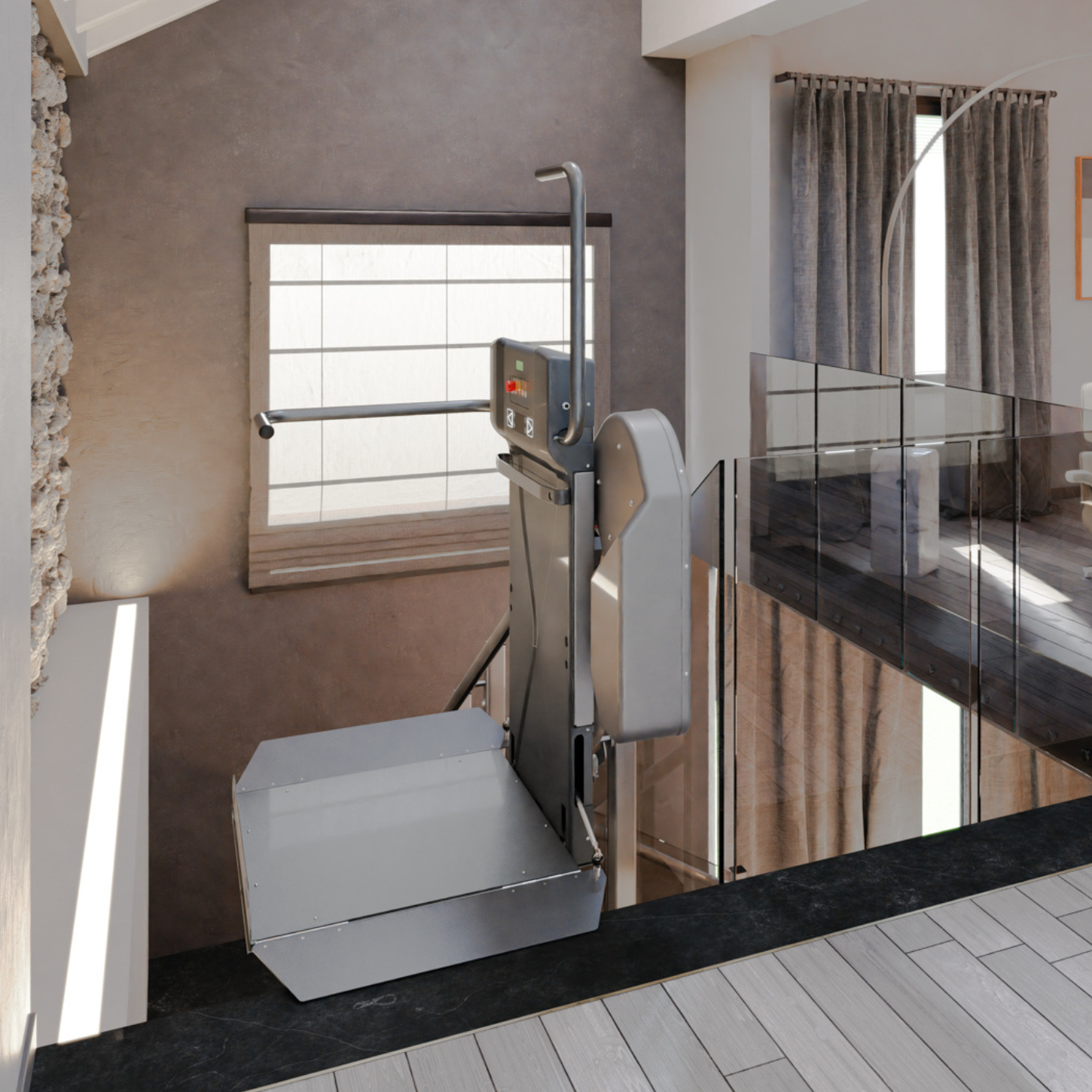

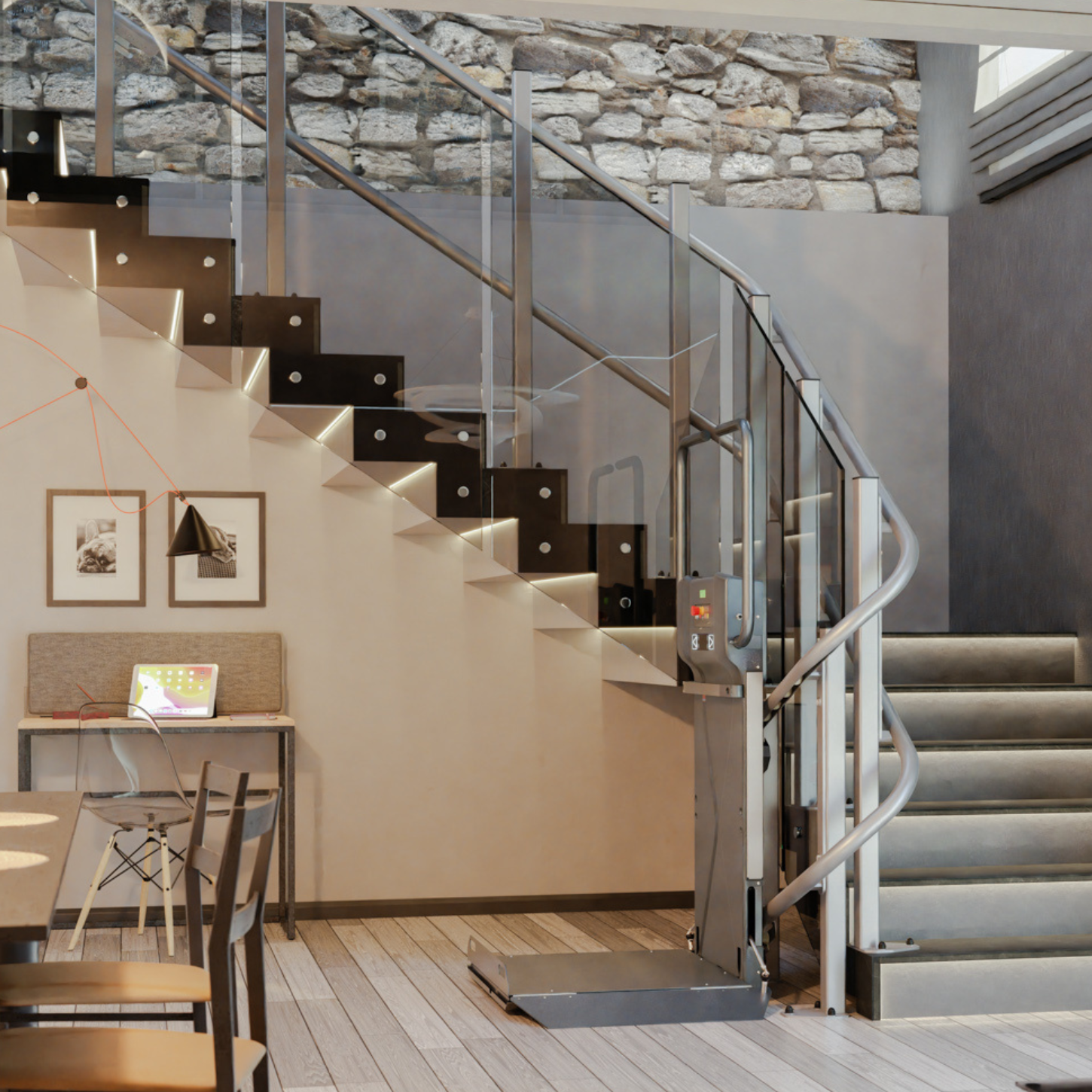

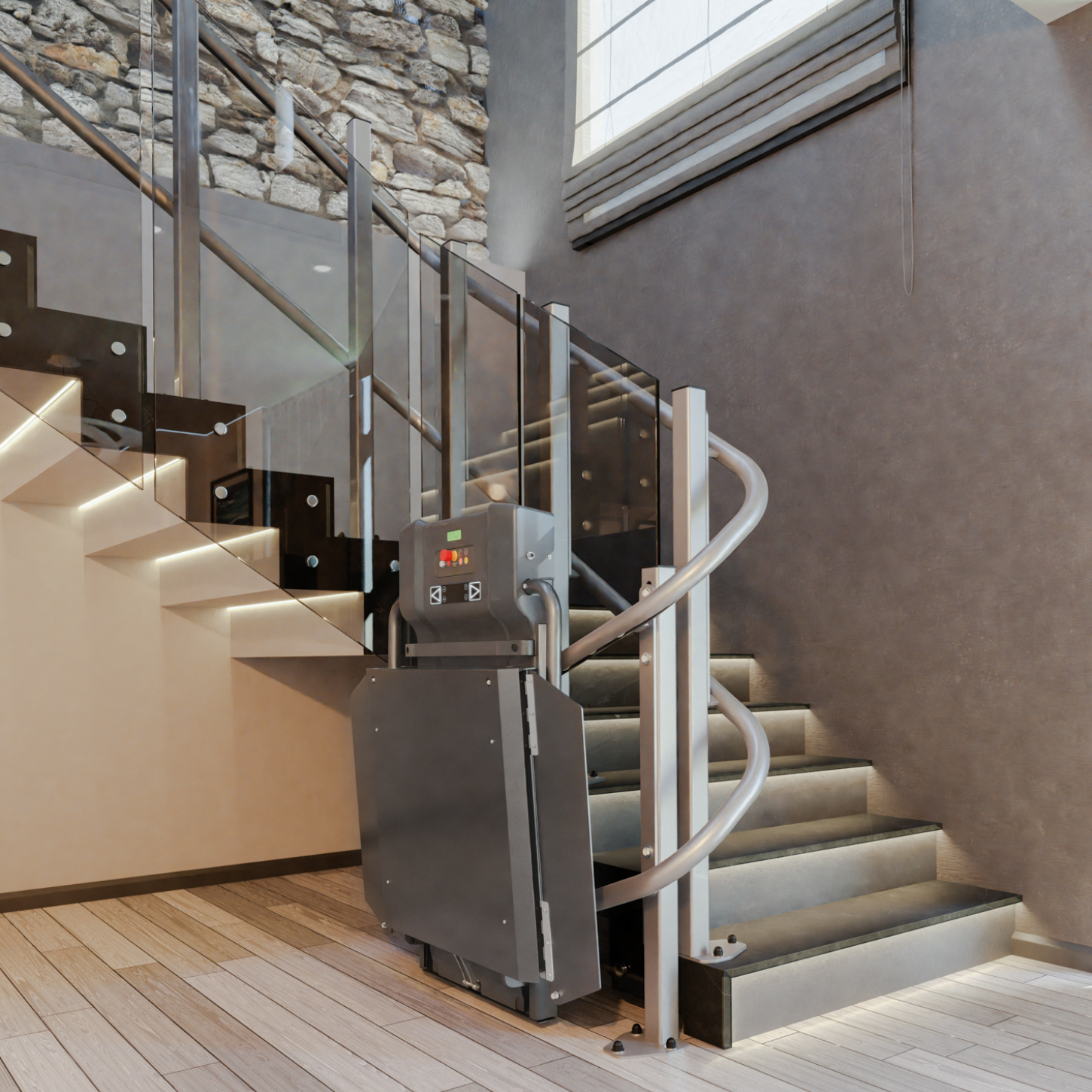

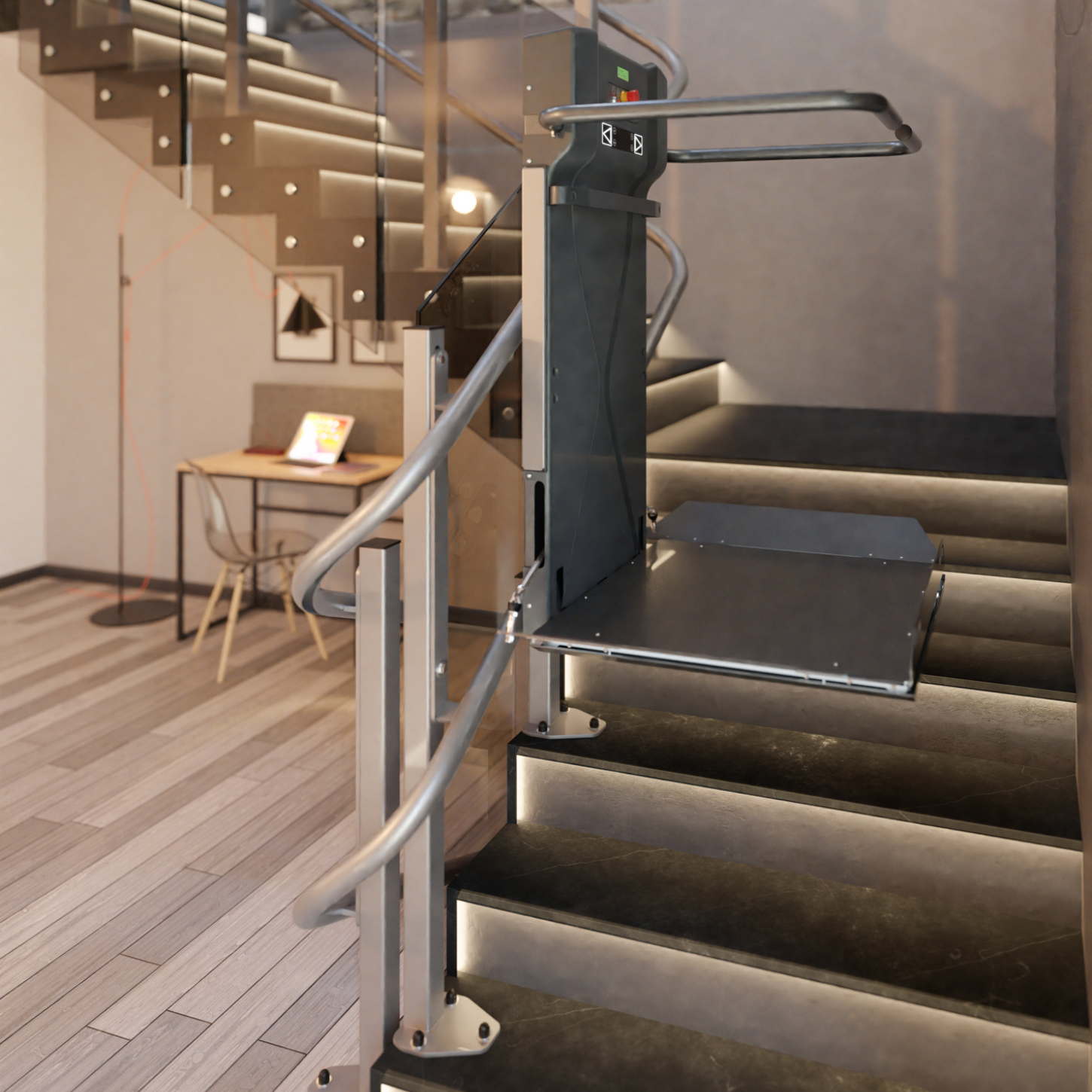

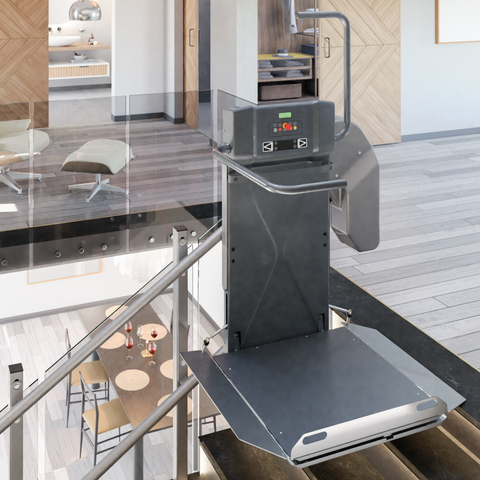

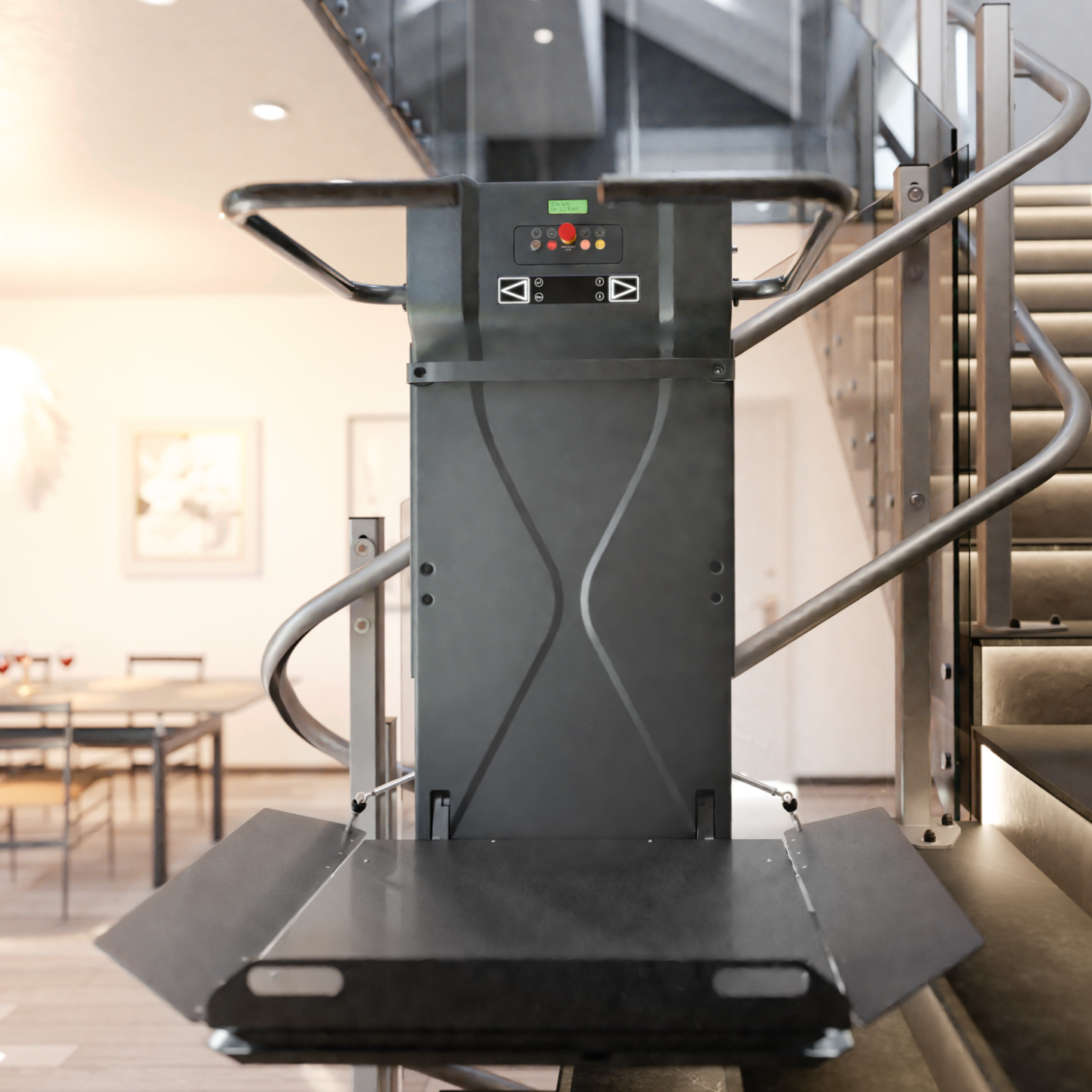

Slim Platform Wheelchair Lift for Curved Stairs
Slim is an inclined platform wheelchair lift designed specifically for curved staircases and is ideal for tight spaces. Unlike other products on the market, Slim is unique in that it has no traction unit onboard, minimizing the space it occupies. This design not only makes Slim the most compact inclined platform lift available but also ensures it operates quietly and offers a comfortable experience for the user.
With its simple and elegant design, Slim seamlessly integrates into the existing style and architecture of its installation environment. Safety is a top priority, and Slim is equipped with an innovative electronic system that constantly monitors its operational status. This system simplifies diagnostics and allows installers to customize key parameters according to the user's specific needs at any time.

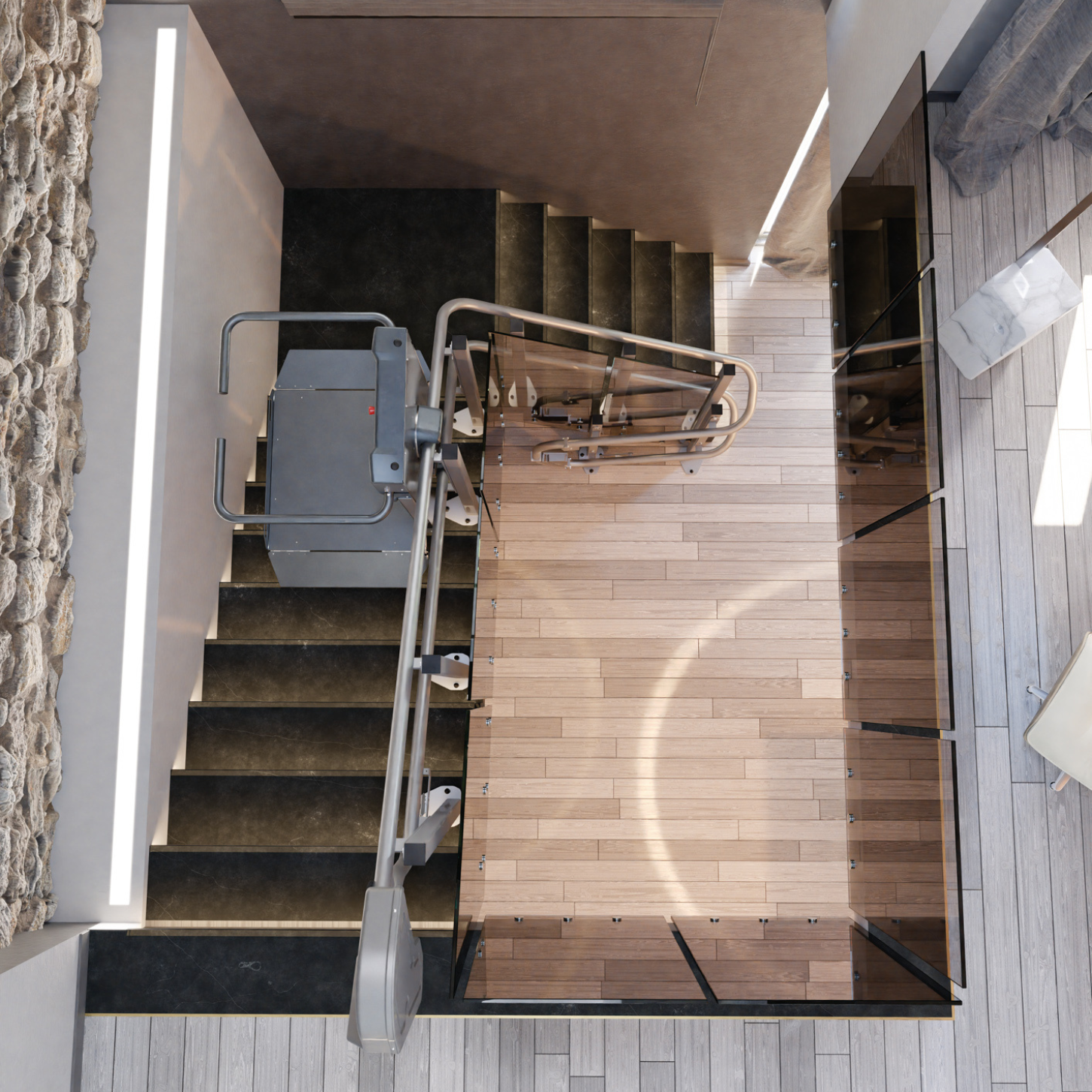

Additionally, Slim's exceptional reliability and versatility make it suitable for various challenging installations, including steep gradients, inside or outside curves, rapid changes in gradient, and winder treads. Slim provides optimal service in any situation, ensuring it meets the highest standards of performance and user satisfaction.
How Do We Curved Order Process?
- You place the order.
- We contact you for architect survey and some more details like seat colour, seat material, rail colour etc. (Price may increase or decrease according to the length or bend of the staircase)
- After survey we send your staircase design to the manufacturer.
- Manufacturer makes the design and sends to me for approval.
- We send you the design provided by the manufacturer.
- After your approval we confirm to the manufacturer to start production of your stairlift. (Most order manufacturing takes between 7-9 days)
- After production we import your stairlift by air. (5-7 working days)
- After import we inspect your stairlift before sending it to you.
- After inspection, we will send stairlift and technician for installation. (Duration: Max 2-3 days)
- Installation time takes 1-2 days, it depends on the complexity of the stairs.
Min-Width 70 cm (27.5" inch - Reverse Drive Required) (Reverse Drive Available in Otolift Only)
Note: You can consult before placing an order. You can send a video of your staircase with start and stop points. We will help you place your order online.
